Plastic Frame 900m3/H Cleanroom Air Filter / 2 Interval V Bank Air Filter_Oc(Jakarta)

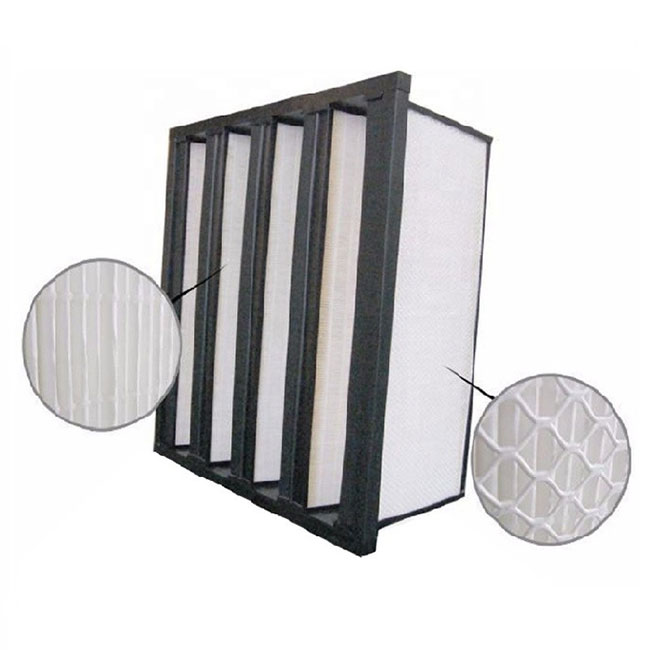

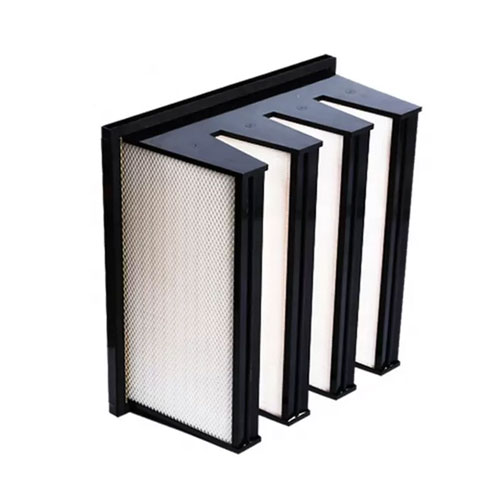

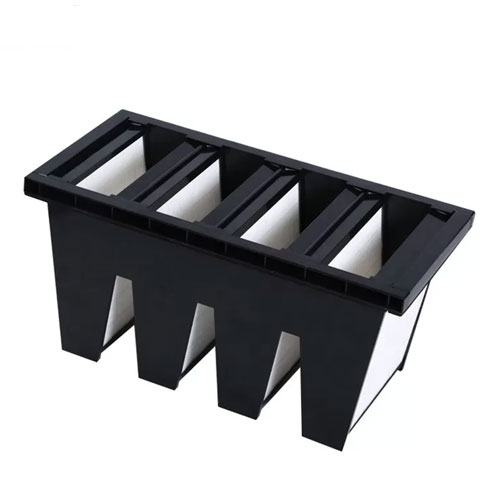

V Bank Compact Filter With Plastic Frame

V Bank Filte With Plastic Frame is mainly used for filtration of more than 0.5μm dust particles, multi- V Mini-pleat design with large filtration area, low resistance, long service life, the use of waterproof ultra-fine glass fiber media, polypropylene plastic frame can be completely incinerated, and mounting flange frame is interchangeable with bag filter.

5-20d

V Bank Compact Filter With Plastic Frame Features

1. High efficiency,

2. Large filter area,

3. Large air flow,

4. Wind speed uniformity is good,

5. Low pressure drop,

6. Long service life.

Material	Ultrafine Fiber Glass Paper With Aluminum Frame
Dividers	PP Melt Spray Fiber Or Ultrafine Glass Fiber Filter Paper
Sealing Strip	EVA, Neoprene
Sealant	PU Two-Component Polyurethane AB Adhesive
Filtration Efficiency	F6, F7, F8, F9
Permissible max relative temperature	70℃
Permissible max relative humidity	80%

V Bank Compact Filter With Plastic Frame Parameters

Size(mm)	Interval	Rated Air Rate(m³/h)	Filter Area(㎡)	Initial Resistance(Pa)	Final Resistance(Pa)	Efficiency
287287292	2	900	4.63	≤60	250-300	F6
				≤80	300-400	F7
				≤100	300-400	F8
				≤120	400-450	F9
592592292	3	2850	15.03	≤60	250-300	F6
				≤80	300-400	F7
				≤100	300-400	F8
				≤120	400-450	F9
