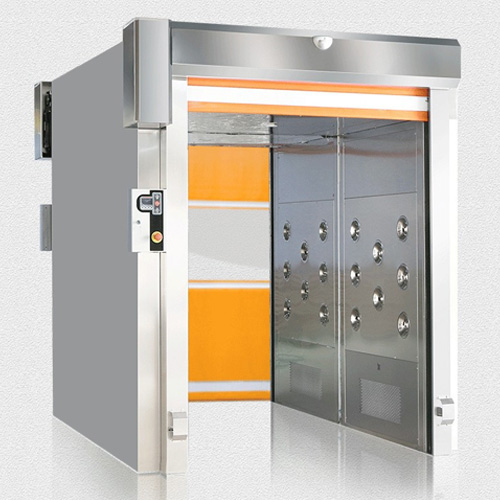

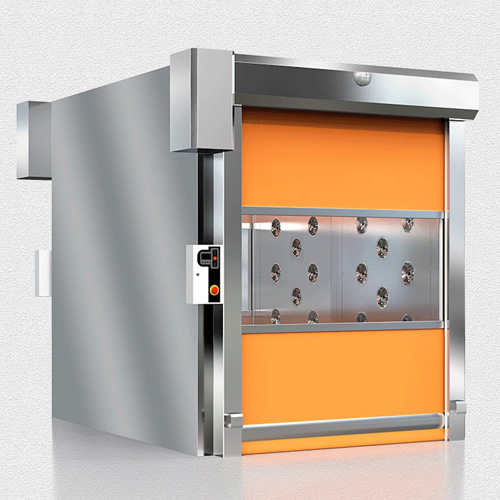

The roller shutter door cargo air shower room is a device designed to provide a blowing effect during the transfer of accessories, turnover boxes, and objects produced in the workshop.
The passage for goods entering the clean room can reduce the pollution caused by the entry and exit of goods into the clean room. The two cargo shower doors of the cargo shower room are electronically interlocked, which can also serve as an airlock. The unpurified air enters the clean room and has a purification effect. The clean airflow filtered by the filter is directed from all directions to the surface of the object through a rotatable nozzle, while dust particles and air with dust particles are filtered by the primary and secondary filters and then circulated back to the air shower area.
Cargo air shower function:
1. Operated with an automatic control system, the two doors are electronically interlocked. When the cargo shower room is blown, the two doors are locked, and infrared induction is used for automatic blowing.
2. Two electronic interlocks can function as an airlock, preventing external pollution and unpurified air from entering the clean area. It is beneficial for the goods to carry dust into the workshop and for the purification standards of the workplace. Configure an air freshening system. For some enterprises that can produce odors, such as food and beverage factories, it can leave residual odors and keep them fresh at all times.
3. The integrated circuit board used, PLC control, LED display of shower time, and touch sensitive micro switch.
4. Automatic switches are used when entering and exiting the door, which makes it convenient and fast for people and materials to enter and exit. It can effectively purify the work and greatly improve work efficiency.
5. The time is generally set to 1-99 seconds, but can also be adjusted as needed. The air speed of the cargo shower room is 25M/S. When it reaches the human body, the speed is 18m/s. At the same time, the nozzle can achieve 36 rotations for dust removal effect.
6. The cargo air shower adopts a modular design scheme, which has a reasonable structural setting and adopts a segmented assembly method, which is conducive to users' needs or shortening, facilitating transportation and making the assembly of the cargo shower convenient.
7. The electronic high-tech voice prompt system installed in the cargo air shower room indicates the completion of the entire blowing process, which is beneficial for the purification effect.
