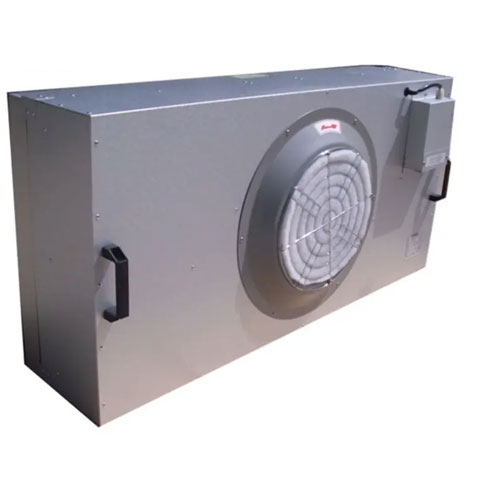

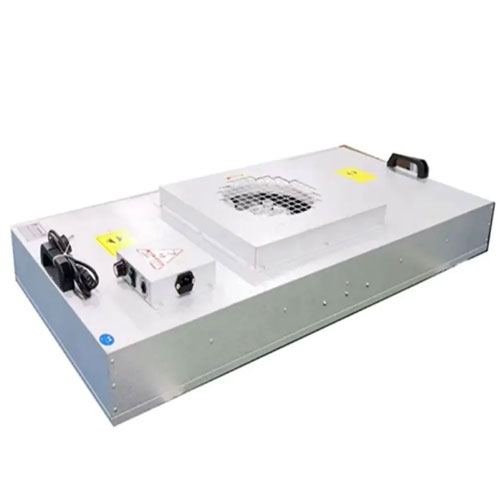

Low Noise AC 24 Fan Filter Unit for ISO 7 Pharmacy Clean Room_Oc(Jakarta)

Product Description

3 speed sections selection or variable speed turbo fan, low noise level, completely closed type, no dust being generated, special design of the air diversion & air duct to try to decrease the pressure drop & noise level and improve fan static pressure as well.

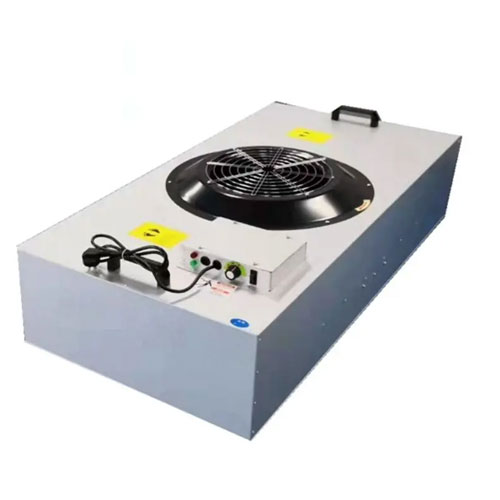

Easy maintenance & repair, the control panel is with ON/OFF switch, indicator lamp, running indicator amp, failure abnormal indicator lamp, and failure output of a & b dry contact.

With backward inclined fan impeller, dynamic vibration balance: G2.5

A safety socket block for connecting electric power is most suitable for a small clean room system.

An optional ULPA filter, which is 99.9999% efficiency at 0.12 microns, is available to meet the extremely critical clean area needs.

Product Parameters

AC Type
Item		QH-S420S			QH--S430S			QH--S525			QH-S440S
Outside Dimension(or customized)	W	1220			1175			1475			1175
	D	610			875			725			1175
	H	360			360			360			360
Body Construction		SUS430 & AL-Zn
HEPAULPA	Features	Aluminium,Filtration Efficiency 99.99%,0.3um / 99.999%,0.1~0.12um
	Dimension	1170×570×50			1170×870×50			1470×720×50			1170×1170×50
Air speed		Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi
External Static Pressure (Pa)		170	170	170	170	170	170	170	170	170	170	170	170
Air Velocity (m/s)		0.36	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5
Air volume (CMM)		15	18	20	24	28	30	24	28	30	30	35	40
Noise (db)		53	56	59	50	55	58	50	55	58	55	58	60
Power consumption (W)		110	130	149	198	211	225	198	211	225	210	230	250
Total Weight (Kg)		38			43			46			57
Power Supply		AC 1Ø 120/ 220V /50/60Hz
