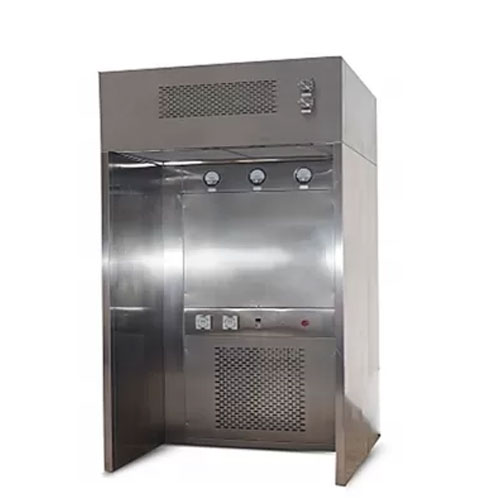

Automatic Weighing Booth For Sampling, Weighing And Analysis
Automatic Weighing Booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Weighing booth is also called sampling booth or dispensing booth.
Features
1. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2. Differential pressure gauge is equipped to real-time monitor the filters.
3. Unique designed air duct effectively controls the noise.
4. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination
of products.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Smooth transitions of wall and ground can eliminate the blind angle.
Parameter
| The Rated Air Flow | According To The Volume Of The Room |
| Total Power | 2KW |
| Total Pressure | 500Pa |
| Average Intensity of Illumination | 500Lux |
| Wind Speed | 0.45m/s |
| Control of Moter Speed | Frequency Converter |
| High Efficiency Filter | Reverse Flange Liquid Tank Filter |
| Material | Stainless Steel |
| Protection Object | Drugs, Operators, working conditions |
Quality Control
Factory test include:
--appearance testing
--functional test and visual inspection
--air velocity testing--noise testing
