Pure Water Preparation System for In Vitro Diagnostic (IVD) Reagents

It is applicable to the production of in vitro diagnostic reagents such as IVD raw materials, immunoassay - based reagents, biochemical reagents, and gene - detection reagents.

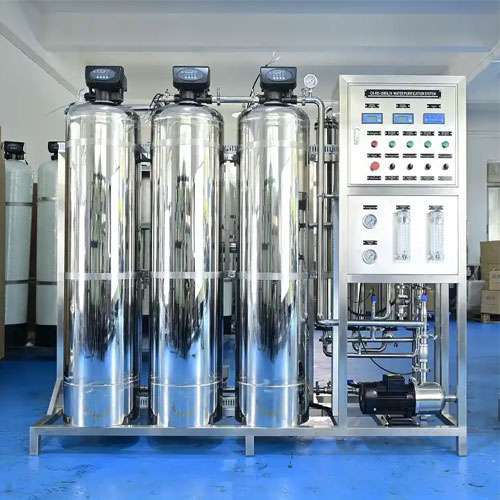

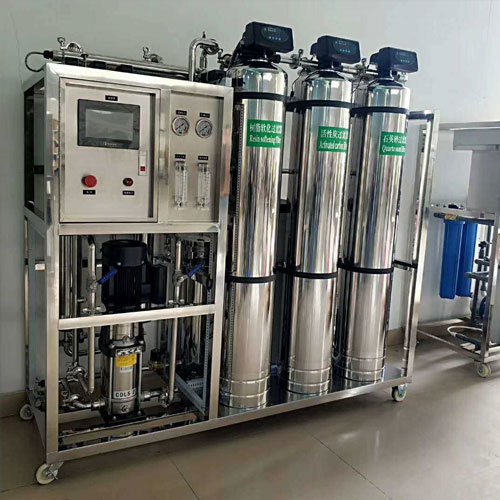

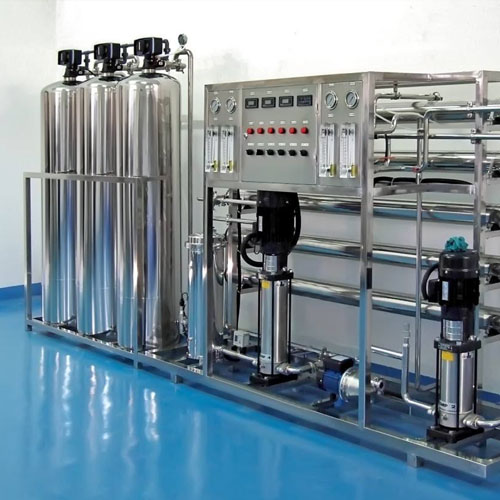

When designing the purified water equipment for in vitro diagnostic reagents, the convenience of management was comprehensively considered. Rational designs were made for sampling points, data inspection, and consumable replacement. The system principle and water quality data can be viewed through the management panel, ensuring stable operation and good water quality. The system adopts a fully automated control mode of PLC + touch screen, which can be started with one - click operation. It is simple and convenient to operate. The equipment is made of all - stainless - steel in an integrated design, presenting an aesthetically pleasing and generous appearance.

PROCESS FLOW

1、Water inlet → Raw water tank → Raw water pump → Multimedia filter → Activated carbon filter → Softening filter → Cartridge filter → Primary high - pressure pump → Primary RO reverse osmosis → Intermediate pure water tank → Secondary high - pressure pump → Secondary RO reverse osmosis → Sterile pure water tank → Ozone sterilization device → Pure water transfer pump → UV ultraviolet sterilizer → 0.22 - um terminal filter → Water outlet → Connect to the conveying pipeline.

2、Water inlet → Raw water tank → Raw water pump → Multimedia filter → Activated carbon filter → Softening filter → Cartridge filter → Primary high - pressure pump → Primary RO reverse osmosis → Pure water tank → EDI transfer pump → EDI electrodeionization system → Sterile pure water tank → Ozone sterilization device → Pure water transfer pump → UV ultraviolet sterilizer → 0.22 - um terminal filter → Water outlet → Connect to the conveying pipeline.
