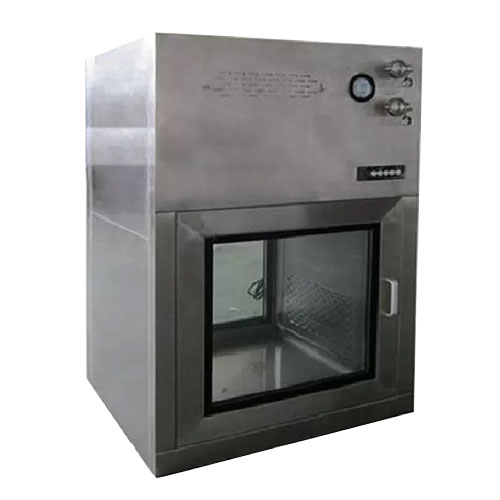

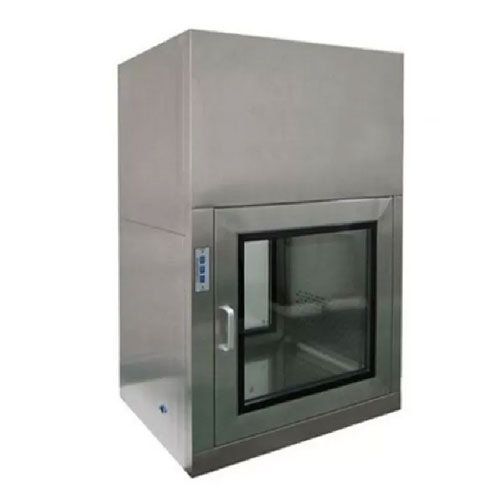

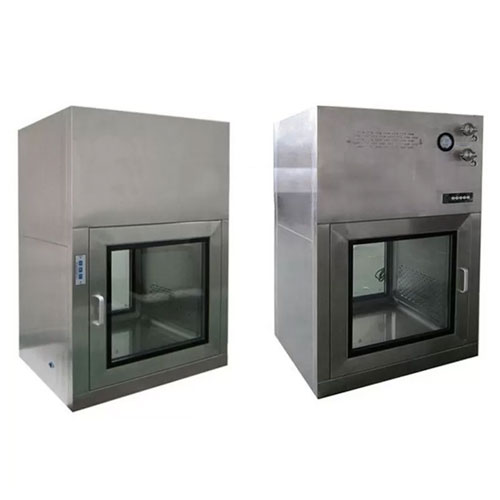

Stainless Steel Dynamic Transfer Hatch For Cleanroom
Standard Pass-Thrus
A pass-through, or pass-thru, is an enclosed space with doors on opposite sides that acts as an airlock in a cleanroom to allow for the transfer of materials between the cleanroom and another space.
Pass-throughs minimize the contaminant transfer and help maintain the cleanroom environment. A cleanroom pass-through can be floor or wall mounted, and can take the form of a cabinet, chamber, or window.
Clean Air Products provides a full line of standard pass-thru cabinets, pass-thru chambers, and pass-thru windows.
A range of sizes and configurations are available to meet your unique requirements. We also offer custom pass-throughs that can be tailored to your specifications.
Products Specification
| Model | GCC-PBS500 | GCC-PBS600 | GCC-PBS700 |
| External Size(W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
| Work Zone (W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 | ||
| Material(Option) | 1: Entirety Sus304.(T=1.2/1.5mm 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) | ||

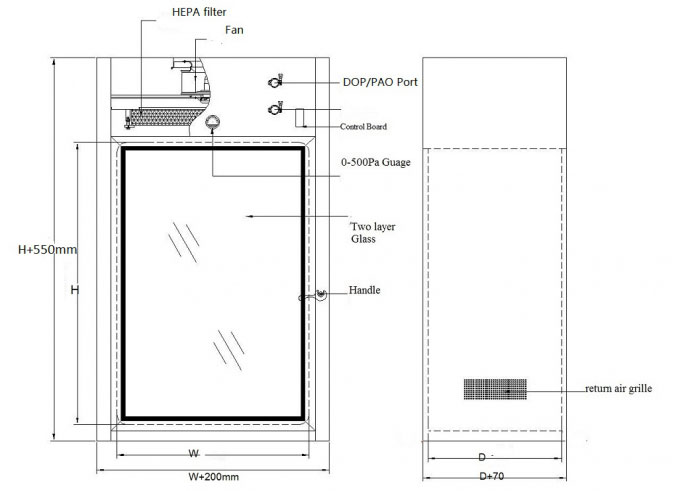

| Control System | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable | ||
| UV Light | 1 Pcs | ||
| Power Supply | 220V/50Hz | ||
| packing Size | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Quality Control
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
