Scope of Application

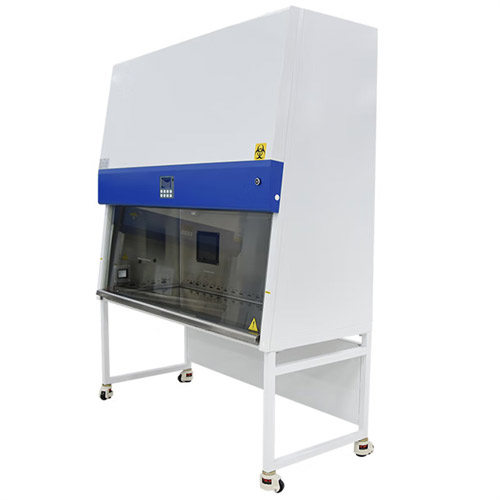

A Class II Type A2 Biological Safety Cabinet is designed with a front operational window, allowing personnel to perform procedures within the cabinet while protecting the operator, product, and environment.
Operating Environment Requirements:
1、Indoor use only.
2、Ambient Temperature: 15°C – 35°C.
3、Relative Humidity: ≤75%.
4、Atmospheric Pressure: 70 kPa – 106 kPa.
5、Power Supply: 220 V, 50 Hz.
Technical Parameters
Power Supply：220 V ±10%, 50 Hz
Dimensions (W×D×H) ：1100 × 750 × 2250 mm
Work Area (W×D×H) ：940 × 600 × 660 mm
Rated Power ：1100 W
Exhaust Airflow：360 m³/h
UV Lamp Power：30 W
LED Lamp Power：12 W × 2
Downward Airflow Speed：0.33 m/s
Inflow Airflow Speed：0.53 m/s
Filtration Efficiency：99.9995% (0.12 μm particles)
Noise Level：≤67 dB(A)
Important Notes：
Total power consumption includes operational zone load (max load: 500 W).
Ensure grounding compliance to avoid electrostatic hazards.
Key Features:
● Dual protection for personnel, samples, and environment.
● HEPA filtration with ultra-low particle penetration rate.
● Real-time airflow monitoring system (optional).
Data subject to manufacturer standards. Contact supplier for certification details.
