Scope of Application

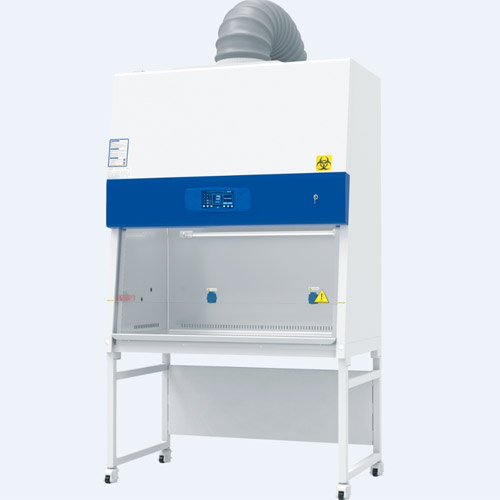

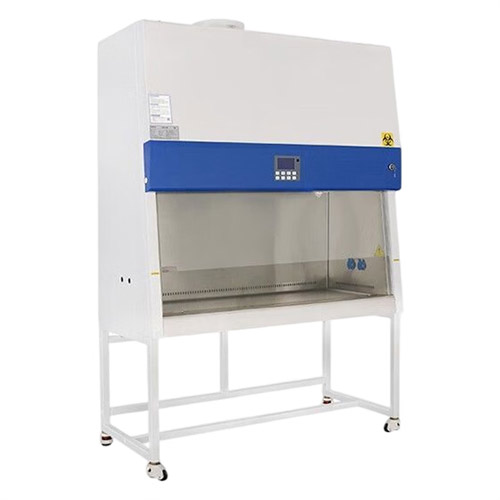

The Class II Type B2 Biological Safety Cabinet is designed with a front operational window, allowing operators to safely perform procedures while protecting personnel, products, and the environment during operations.
Operating Environment
(1) Indoor use only.
(2) Ambient Temperature: 15°C – 35°C
(3) Relative Humidity: ≤75%
(4) Atmospheric Pressure Range: 75 kPa – 106 kPa
(5) Power Supply: 220V 50Hz
Technical Parameters
Power Requirements: 220V 50Hz
Dimensions (W×D×H): 1100×750×2250(mm)
Work Area (W×D×H): 940×600×660(mm)
Rated Power: 1300W
Total System Exhaust Airflow: 1050m³/h
UV Lamp Power: 30W
LED Lamp Power: 12W×2
Downward Airflow: 0.33m/s
Inflow Airflow: 0.53m/s
Filtration Efficiency: 99.9995% (0.12μm particles)
Noise Level: ≤67dB(A)
Notes
(1) Total power consumption includes the operational zone load (max load: 500W).
